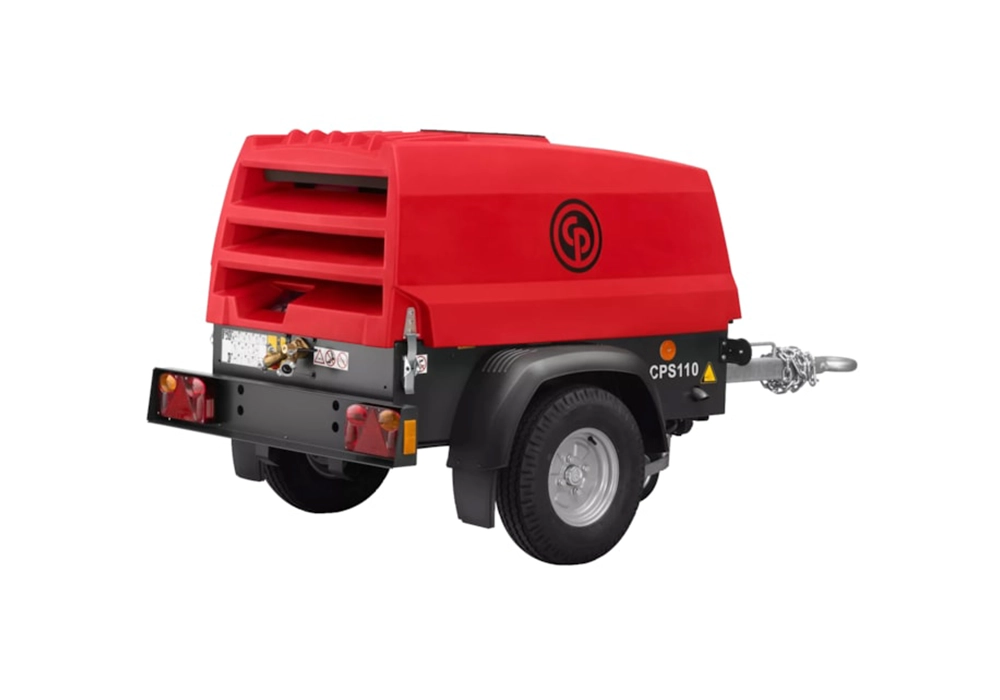

Model: CPS 110
Minimum effective receiver pressure: 72 psi(g)
Maximum effective receiver pressure (Unloaded): 128 psi(g)
Normal effective working pressure: 100 psi(g)
Actual free air delivery: 95 cfm
Fuel consumption:
at 100% FAD (full load): 1.46 US gal/hr
at 75% FAD: 1.20 US gal/hr
at 50% FAD: 0.86 US gal/hr
at 25% FAD: 0.62 US gal/hr
Specific fuel consumption at 100% FAD: 29.8 g/m³
Maximum typical oil content of compressed air: 5 mg/m³
Max. sound pressure level (Lp @ ISO 2151): 71 dB(A)
Max. sound power level (Lw @ 2000/14/EC): 99 dB(A)
Compressed air temperature at outlet valve: 185 °F (85 °C)
Max. ambient temperature at sea level: 109 °F (43 °C)
Min. starting temperature with cold weather equipment: -4 °F (-20 °C)
Type: Kubota D902
Emission stage: Tier 4 Final
Coolant: GENcool
Number of cylinders: 3
Bore: 72 mm
Stroke: 73.6 mm
Swept volume: 0.898 l
Engine power at normal shaft speed @ ISO 9249G: 24.8 hp
Full Load: 3600 rpm
Unload: 2200 rpm
Capacity of oil sump – Initial fill: 0.97 US gal (3.67 l)
Capacity of oil sump – Refill (max): 1.00 US gal (3.79 l)
Capacity of cooling system: 1.19 US gal (4.50 l)
Capacity of compressor oil system: 2.64 US gal (10.00 l)
Net capacity of air receiver: 2.64 US gal (10.00 l)
Air volume at inlet grating (approx.): 1970 cfm
Capacity of standard fuel tanks: 7.52 US gal (28.50 l)
Safety valve – minimum opening pressure: 143.5 psi(g)
